Naviate Rebar Extension

Naviate Rebar Extension

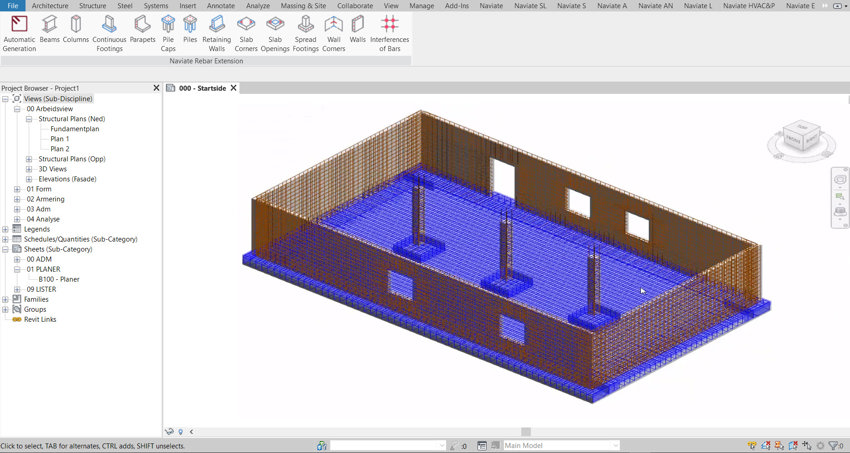

Automate the process of generating reinforcement for elements like beams, columns and piles.

Save time

Save time...

when generating reinforcement for parameters like beams, columns and piles



Increase control of your data

Increase control of your data...

on reinforcement parameters





optimise workflows

Optimise workflows...

with automatised processes for generation of reinforcement for elements like beams, columns and piles



Key benefits

  • Automatic reinforcement generation. Perform an automatic process of generating reinforcement for elements as beams, columns, piles.
  • Beams. Generate reinforcement for a rectangular cross-section of a beam in an Revit and Robot.
  • Columns. Generate reinforcement for rectangular and round cross-sections of an RC column in an Revit and Robot.
  • Piles. Generate reinforcement of a pile defined in a Revit model. You can generate reinforcement for a single pile or a group of piles positioned under the pile cap.

Automatic reinforcement generation

  • Beams
  • Columns
  • Continuous footings

Productivity

  • Parapets
  • Pile caps
  • Piles
  • Retaining walls

Collaboration

  • Slab corners
  • Slab openings
  • Spread footings

Documentation

  • Wall corners
  • Walls
  • Interference of reinforcing walls
